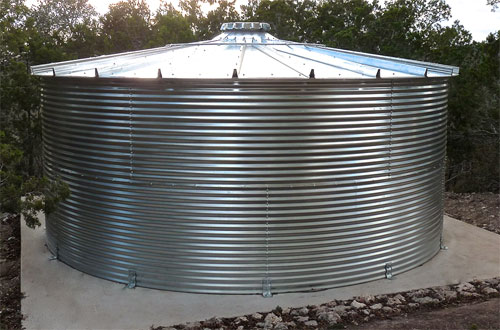

13,000 Gallon Corrugated Metal Liner Tank

SKU: CWT01802WTFS Categories: ,

Capitol Water Tanks is proud to be an authorized distributor of Corgal and Contain brand corrugated water tanks.

This 13,000 -gallon corrugated metal liner tank is ideal for residential or commercial applications, such irrigation needs,  whole house potable drinking water source and various other storage needs.

They are long lasting with a 20 year manufacture’s warranty.

Dimensions

Diameter: 18′

Eave Height: 7’3″

Peak Height: 12′ 6″

Roof OD: 18’8″

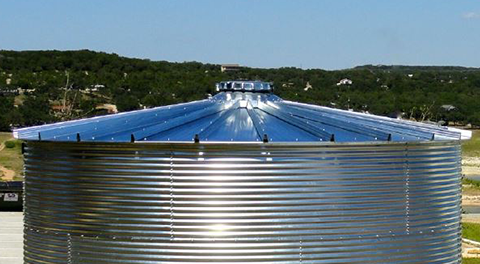

Roof Style:  30 Degree Corrugated High Rim

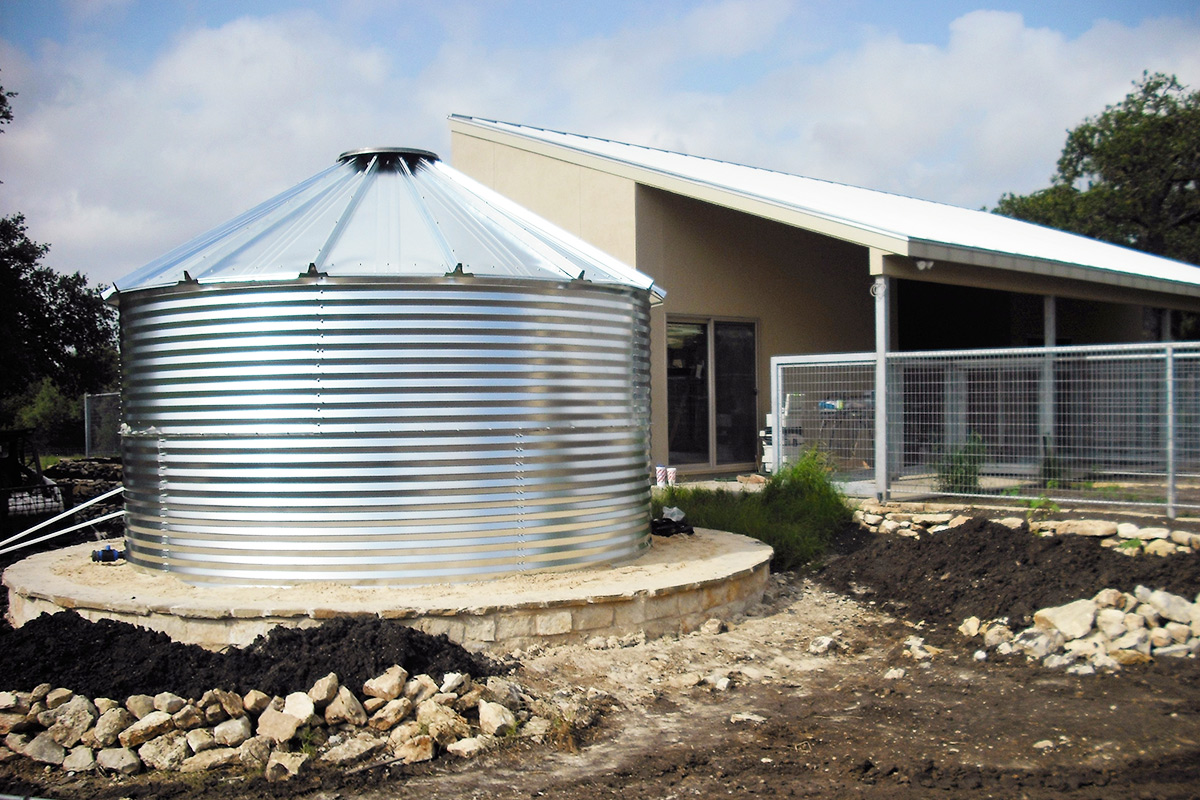

Capitol Water Tanks is proud to offer a complete line of Corrugated Galvanized Steel Liner Water Storage Tanks.

Many prefer the aesthetics of the galvanized look and the functionality they provide.   These tanks are installed with pre-liners and flexible membrane liners on the inside of tanks for water containment.  Crafted for durability, each tank is built onsite, eliminating the need for heavy machinery on your property.  Great for residential or commercial needs, these tanks are adaptable and range from 6’ to 105’ in diameter holding anywhere between 700 and 620,000 gallons of water.  Designed to withstand all weather, these tanks are built for your environment.  The water collected can be used for potable/drinking, irrigation or fire protection.

The benefits for this tank include:

  • Can be an economical storage solution for larger water volume needs
  • Variety of manufacturers means a variety of styles and looks
  • Conical, grain silo roofs and low slope, domed roofs available
  • Complete protection from any UV sunlight degradation over time
  • Rainwater is contained inside poly liner inside cistern
  • Provides strength and durability for years of reliable performance
  • Poly liner can be food grade, NSF approved for drinking water storage
  • Corrugated metal tanks are easy to install on difficult properties since they are built onsite, piece by piece

Applications:

  • Fire Protection
  • Water Storage
  • Municipal Applications
  • Agricultural & Food-Production
  • Industrial Applications

Other Features:

  • Different roof Styles
  • Cost effective and easy to install
  • Easy to transport to hard to reach areas
  • Reusable and easy to relocate
  • Corrosion resistant
PREMIUM MATERIALS ARE OUR STANDARD

All Corrugated water storage tanks are engineered to these minimum standards:

  • G-115 hot dipped galvanization
  • 20-gauge steel sidewalls
  • 24-gauge steel roof panels
  • Designated bottom wall sheets to better distribute weight
  • Full tank geotextile pre-liner
  • 24 mil PVC flexible membrane liner
  • Schedule 80 PVC flanges



Dimensions 216 × 87 in
